WHAT IS GRP?
GRP Stands For Glass Reinforced Polyester, its components are (E-glass chopped strand mat, Cobalt, polyester, proxide )
Sheets of glass fibre matting are layered over a mould which is then coated with a special resin. The mixture is then left to set naturally or for quicker results is placed in an oven.
The hardened polymer is then decorated and polished according to the customers’ specifed finish.
Application For :
GRP (RESIN) is used for outside applications in large decorative pieces because of its light weight and high strength also it has a high durability against water and it’s used in interior applications as well.
Applications:

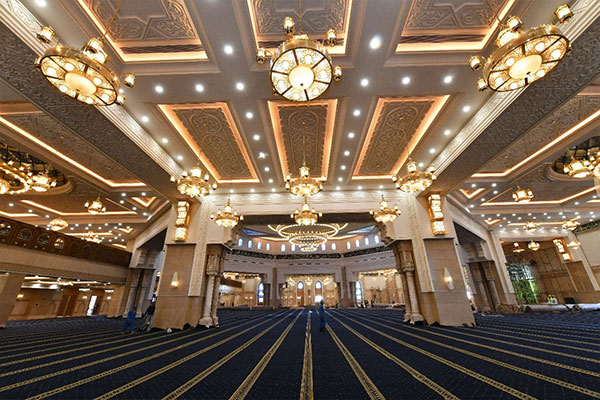

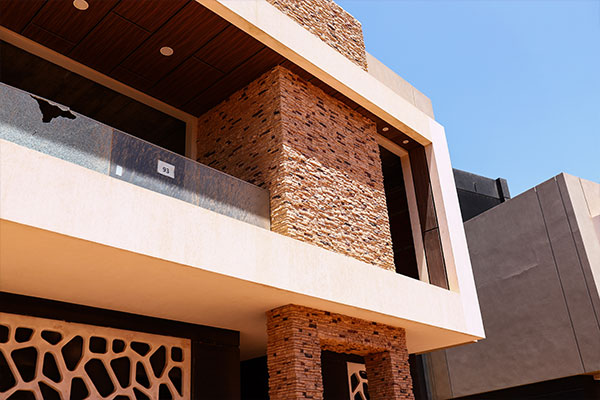

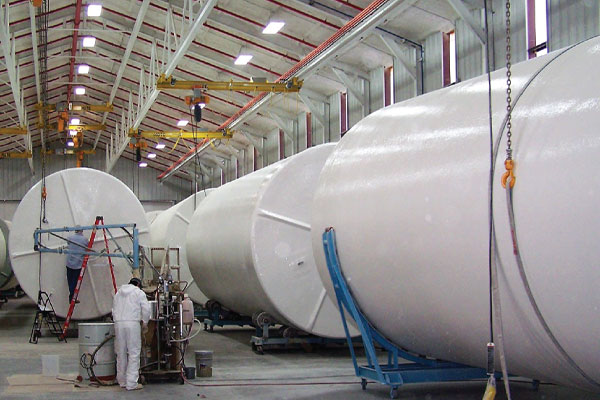

Typical applications are architectural columns, ceiling Domes, decorative mouldings, panels, beams and rafter tails, manufacture & Isolate water tanks & swimming pools; it’s also used for inside applications as cladding panels.
Physical Properties
| UNITS | RANDOM GRP | UNIDIRECTIONAL GRP | ||
|---|---|---|---|---|
| Grade | -- | *33 | *82 | |
| Compressive Strength | MPa | 75 | 250 | |
| Tensile Strength | MPa | 120 | 450 | |
| Impact Strength | KJ/m2 | 75 | 250 | |
| Elastic Modulus | G.Pa | 8 | 53 | |
| Shear Interlaminar | N/mm2 | 18.5 | 18.5 | |
| Thermal Conductivity | W/m k | 200 | 200 | |
| Thermal Expansion Coefcient | *10-6/ C | 23 | 23 | |
| Maximum Working Temperature | C | 200 | 200 |
